FJTY220D80P Single Phase Intelligent Control Module - 80A, 220VAC, Soft Start, 4-20mA/0-10V/0-5V/10K POT Input - Perfect for Industrial Automation, HVAC Systems, and Motor Control Applications
$134.75
$245
Safe 45%
FJTY220D80P Single Phase Intelligent Control Module - 80A, 220VAC, Soft Start, 4-20mA/0-10V/0-5V/10K POT Input - Perfect for Industrial Automation, HVAC Systems, and Motor Control Applications
$134.75
$245
45% Off
Delivery & Return: Free shipping on all orders over $50
Estimated Delivery: 10-15 days international
10 people viewing this product right now!
SKU: 25723211
Guranteed safe checkout
Description
Fastron FJTY220D80P, Single Phase Intelligent Phase or Burst Control Module with 2 second Soft Start, 4-20mA,0-10V,0-5V,10K POT Input, 220VAC, 80 Amp Per Phase, Voltage Regulator
- 4-20mA,0-10V, 0-5V or 10K POT Proportional Phase Control Input
- Ratings from 25A to 80 Amp @ 180-280 VAC
- SCR output for heavy industrial loads
- Instantaneous turn-on output
- Direct bond copper substrate
- Direct power lead frame
- Epoxy free design
Specification
| Trent part Number | FJTY220D80P |

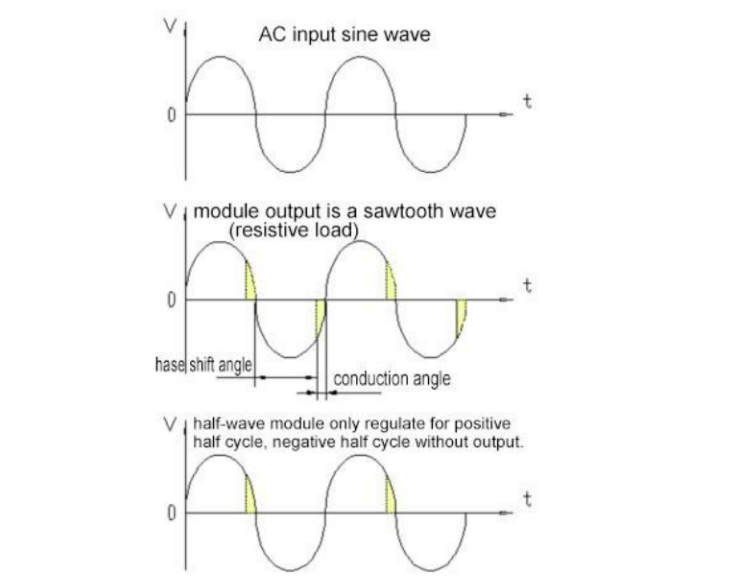

| Switching Type | Phase Angle (Random Crossing)/ Burst Fire (10 cycles) |
| Control Voltage | 4-20mA,0-10V,0-5V,10K POT Proportional Input |
| Load Current | 80 Amp (rms) |
| Surge Capability | 690Amp (peak) |
| Special Feature | Single Phase Proportional Controller + 2 Second Soft Start + Selectable Half Wave control |
| Mounting Style | Panel Mount |
| Load Voltage Range | 170-220VAC +15% (253VAC Max) |
| Max Non Repetitive Peak Voltage | 600 Vp |
| Termination Style | Barrier Strip Screw |
| Dimensions | 105 x 80 x 55mm |
| Unit Weight | 400g |
| Factory Pack Qty | 20 |
