FDV 15 420 24 Battery DC Voltage Transducer - Din Rail Mount, 0-15VDC Input, 4-20mA Output, 24VDC Power Supply, 150ms Fast Response - Ideal for Industrial Automation & Power Monitoring Systems
$123.75
$225
Safe 45%
FDV 15 420 24 Battery DC Voltage Transducer - Din Rail Mount, 0-15VDC Input, 4-20mA Output, 24VDC Power Supply, 150ms Fast Response - Ideal for Industrial Automation & Power Monitoring Systems
$123.75
$225
45% Off
Delivery & Return: Free shipping on all orders over $50
Estimated Delivery: 10-15 days international
14 people viewing this product right now!
SKU: 88496566
Guranteed safe checkout
Description

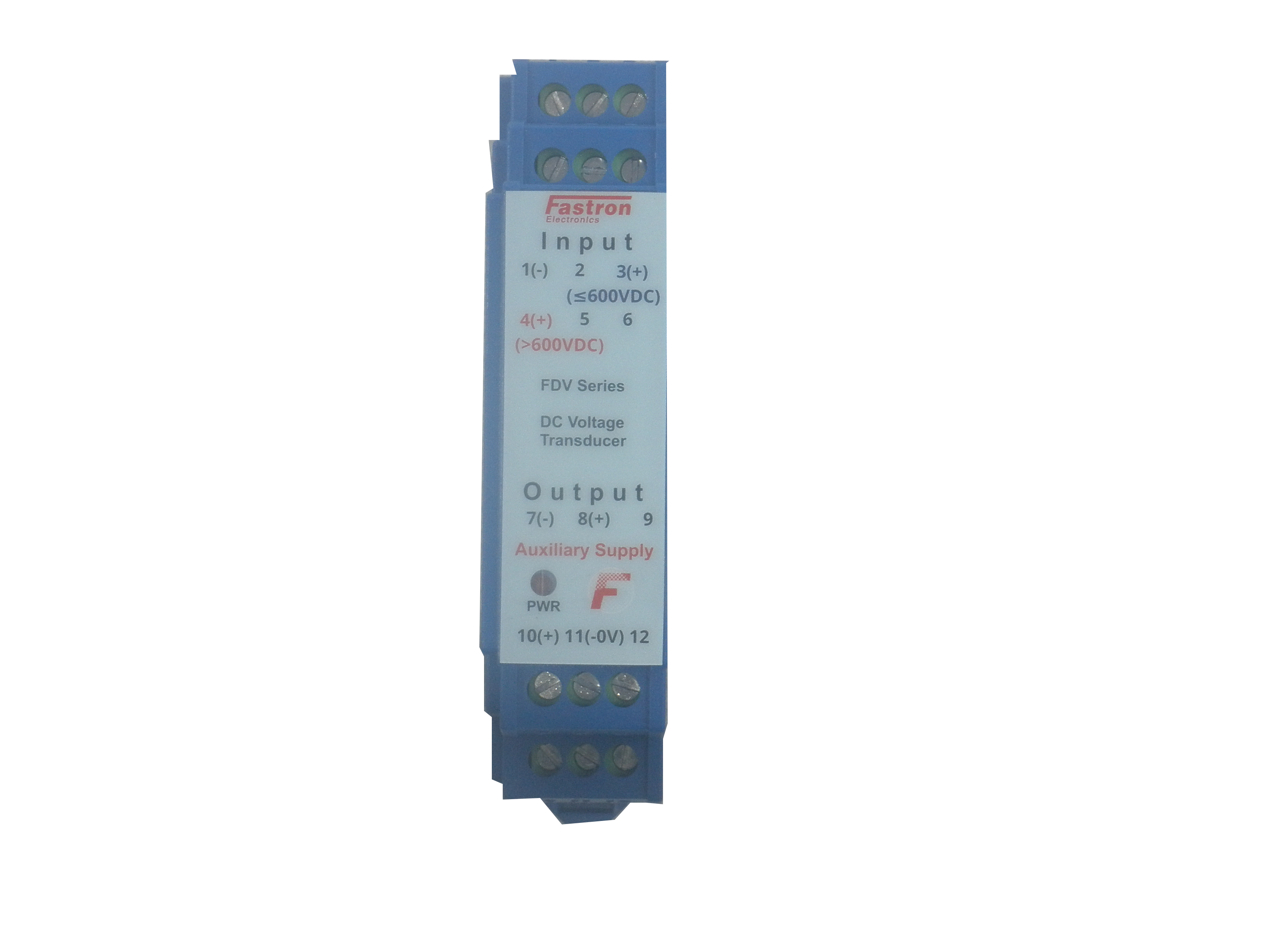

Fastron FDV-15-420-24, Battery DC Voltage Transducer, Din Rail Mount, 0-15VDC, 4-20mA output, 24VDC Supply Voltage, 150mS Response
- 150mS Response Time
- PC 94 UL V0
- Input signals can be converted to insulated 5V DC output (for voltage output type)
- Each unit needs just 22.5 x 114 mm depth DIN Rail cabinet space
Specification
| Fastron Part Number | FDV-15-420-24 |
| Analogue Output | 4-20mA |
| Input | 0-15VDC |
| Measurement Range | 120% |
| Overload | 150% Continuous |
| Operating Temperature | -30 - 70°C |
| Operating Voltage | 24VDC +/-15% |
| Voltage Isolation (1 min) | 2.5kV |
| Accuracy | 1% |
| Response Time | 150mS |
| Termination Style | Screw |
| Mounting Style | DIN Rail Mount |
| Safety | CE, UL94V0 |
| Weight | 170g |
| Factory Pack Qty | 1 |
Datasheet
